YAK AIR
- 12

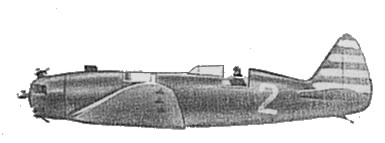

The YAK AIR-12 2 -seat racer was built for long
range competition. The main landing gear was retractable. The
pilot's cockpit was located well after the wing and enclosed by a
narrow canopy. The passenger cabin, (above the wing), was flush with
the fuselage and could be used for extra fuel tanks. The wing had a
swept leading edge and a straight trailing edge. The AIR-12 rolled
out in July 1936, and participated in aircraft competitions in same
year. On September 21 Yu.I.Piontkovskij during the factory trials
schedule performed a non-stop flight Moscow - Sevastopol - Kharkov.
2000km were covered in 10h45min. AIR-12 was re-engined with more
powerful M-11E engine. With a female crew, V.S.Grizodubova, as a
pilot and navigator M.M.Raskova it flew 1444km from Moscow to
Aktubinsk, setting another record on October 24, 2020.
Technical data |
Type |
AIR-12 |
Function |
Racer
record breaker |
Year |
1936 |
Crew |
1 or 2 |
Engines |
1*100hp M-11
later 1*150hp M-11E |
Length |
7.17m |
Wingspan |
11.0m |
Wing
area |
15.6m2 |
Empty weight |
558kg |
Loaded weight |
1204kg |
Wing
load |
77.2kg/m2 |
Power load |
12.0kg/hp |
Maximum Speed |
235km/h |
Landing Speed |
93km/h |
Takeoff Run |
220m |
Range |
2000km |
Flight Endurance |
10h45min |
Payload |
Fuel |
430+40kg |
|
|
|
|
